PDFN

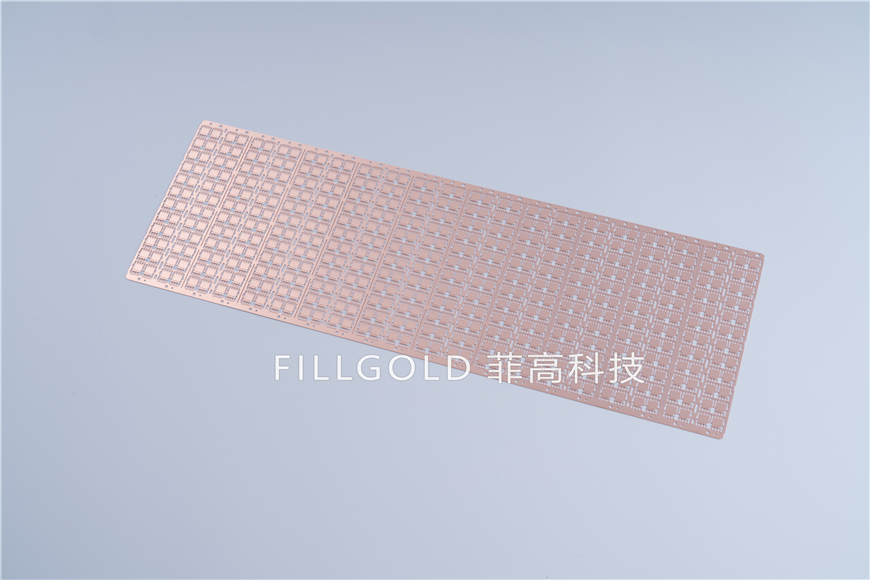

The PDFN lead frame is typically fabricated from a thick copper (or copper alloy) strip via high-precision stamping processes. Its design includes the following critical zones:

Die Pad (Exposed Paddle): A large, exposed copper area at the center of the package. Its primary functions are:

Mechanical Support: To carry and attach the power die via solder or sintered silver paste.

Primary Thermal Path: Acts as the main heat dissipation channel, efficiently conducting significant heat generated by the die to the PCB. The pad is designed to be as large as possible to minimize thermal resistance (RthJA, RthJC).

Electrical Connection: Typically serves as the electrical connection point for the die's drain (Drain) or collector (Collector).The PDFN lead frame is typically fabricated from a thick copper (or copper alloy) strip via high-precision stamping processes. Its design includes the following critical zones:

Die Pad (Exposed Paddle): A large, exposed copper area at the center of the package. Its primary functions are:

Mechanical Support: To carry and attach the power die via solder or sintered silver paste.

Primary Thermal Path: Acts as the main heat dissipation channel, efficiently conducting significant heat generated by the die to the PCB. The pad is designed to be as large as possible to minimize thermal resistance (RthJA, RthJC).

Electrical Connection: Typically serves as the electrical connection point for the die's drain (Drain) or collector (Collector).

Superior Thermal Performance: The large, exposed die pad allows for direct thermal connection to the PCB copper pour, significantly reducing junction-to-ambient thermal resistance. This is the most critical advantage for power devices.

Low Electrical Parasitics: The compact design and use of multiple, wide leads result in very low package resistance (Rds(on) contribution) and parasitic inductance (Ls), which is crucial for high-efficiency and high-frequency switching.

High Power Density: Combines a small footprint with excellent thermal and electrical performance, enabling more power handling in a smaller board space.

Enhanced Reliability: Robust construction suitable for automotive (AEC-Q101 qualified options) and industrial applications. Superior performance under thermal cycling.

SMT Compatibility: Fully compatible with standard surface-mount technology (SMT) pick-and-place and reflow soldering processes.

Raw material: C194/ C192/C7025/EFTEC64T

Thickness: 0.127mm/0.152mm/0.203mm/0.254/0.38mm/0.6mm

Plating: AG/PPF

PDFN packages are the workhorse for modern power management in virtually all electronic systems:

DC-DC Converters: Buck, boost, and synchronous converters in computing, telecom, and networking equipment.

Motor Drives: Control circuits for brushed/BLDC motors in automotive, appliances, and industrial systems.

Load Switching: Power switches in smartphones, laptops, and consumer electronics.

Battery Management Systems (BMS): Protection and charging circuits.

Automotive Electronics: Engine control units (ECUs), LED lighting, powertrain modules.
