WIRE BONDING

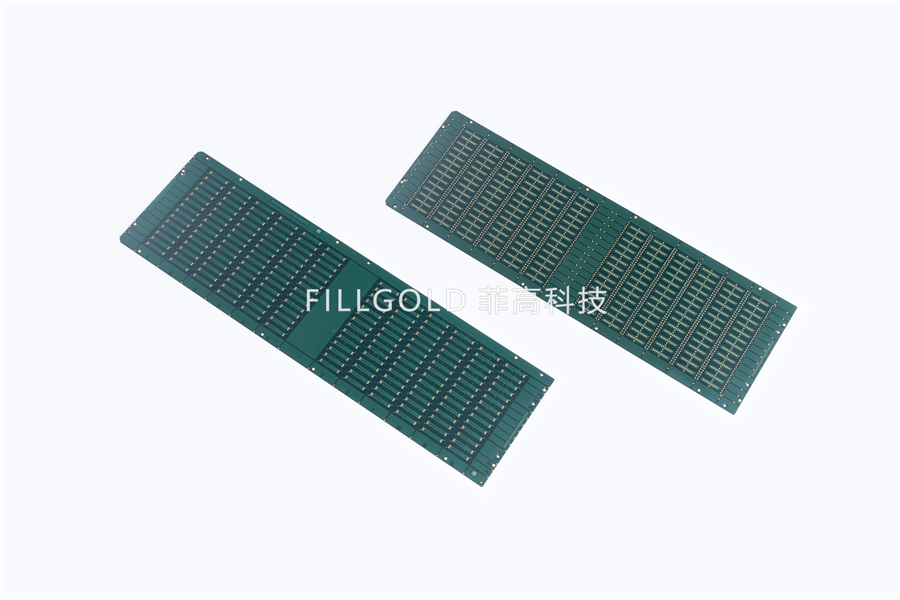

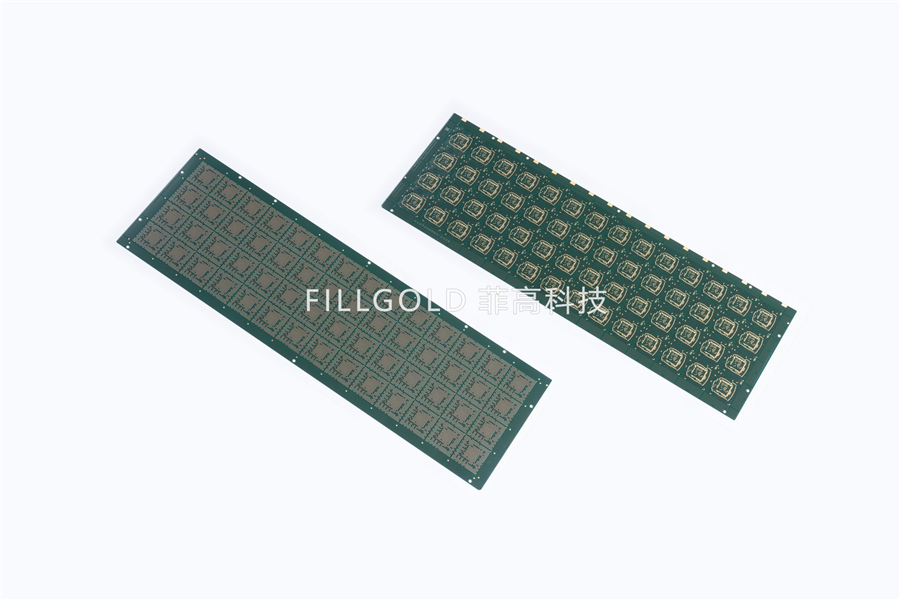

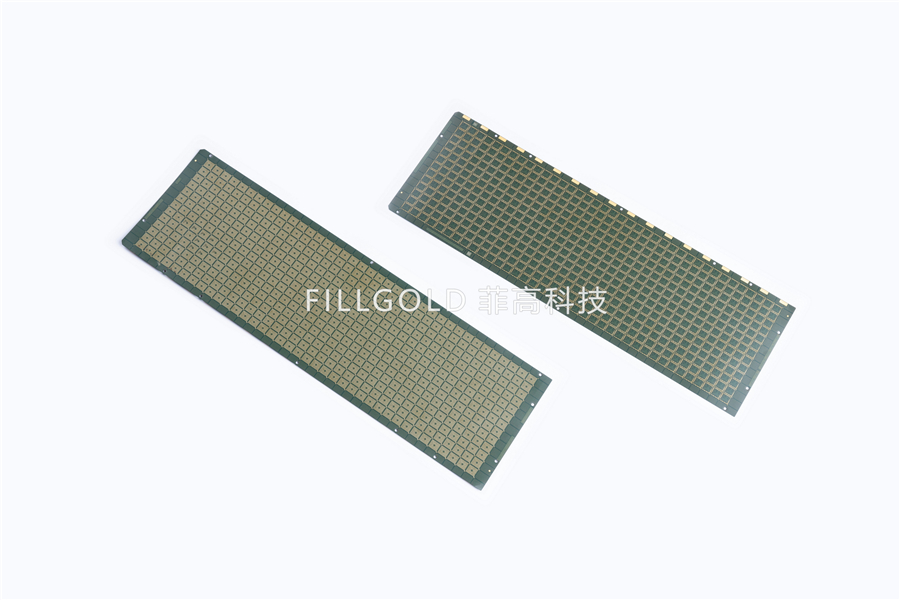

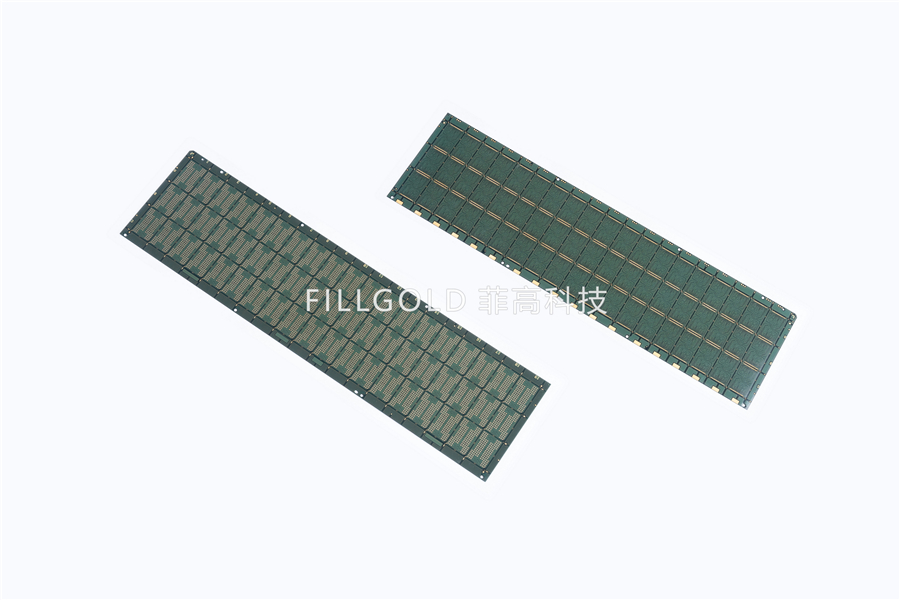

Wire bonding substrate is a foundational component in semiconductor packaging, particularly for a wide range of integrated circuits (ICs) from low-pin-count chips to complex systems. It serves as the mechanical platform and electrical interconnection foundation for the traditional and highly versatile wire bonding packaging technology.
The semiconductor die is attached face-up onto the substrate. Extremely fine wires (typically made of gold, copper, or aluminum) are then used to create electrical connections between bonding pads on the die and corresponding contact points (bond fingers) on the substrate.
Products Detail
-
Features of Wire Bonding Substrate:
Interconnection Platform: The substrate's primary function is to fan out the dense, fine-pitch connections from the silicon die to the coarser, more robust pitch required for the next-level assembly (e.g., a printed circuit board - PCB). It routes signals, power, and ground from the bond fingers to the package's external terminals (like solder balls or leads).Mechanical Support and Heat Dissipation: It provides a stable, rigid base for mounting the die. Substrates often incorporate thermal pathways, such as exposed metal pads (thermal vias or a ground plane) connected to the die attach pad, to help conduct heat away from the active chip.
-
Advantages of Wire Bonding Substrates:
Maturity and Cost-Effectiveness: It is a well-established, highly automated process with lower tooling costs compared to some advanced packaging methods, making it economical for a wide range of devices.Flexibility and Repair: The substrate design can be easily adapted for different die sizes and I/O layouts. Wire bonds can sometimes be reworked or repaired.Proven Reliability: Decades of use have resulted in deeply understood reliability models and high-yield manufacturing processes.Compatibility with Large Dies: Suitable for larger die sizes where the thermal expansion mismatch in flip-chip packages might cause reliability issues.
-
Application:
Widely used in Consumer Electronics and General ICs,Automotive Electronics,High Power & Lighting , Communications and Radio Frequency (RF)Medical and Aerospace
